YJJ DTS-4O2 Industrial Electrochemical Oxygen Sensor Is Used In Mining Industry

Product Description:

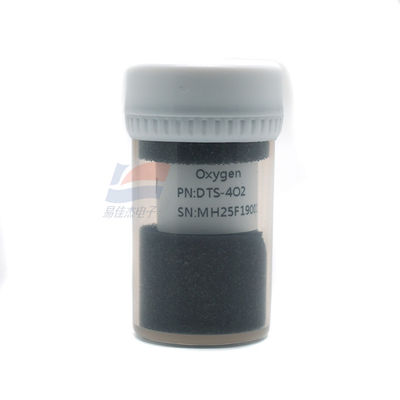

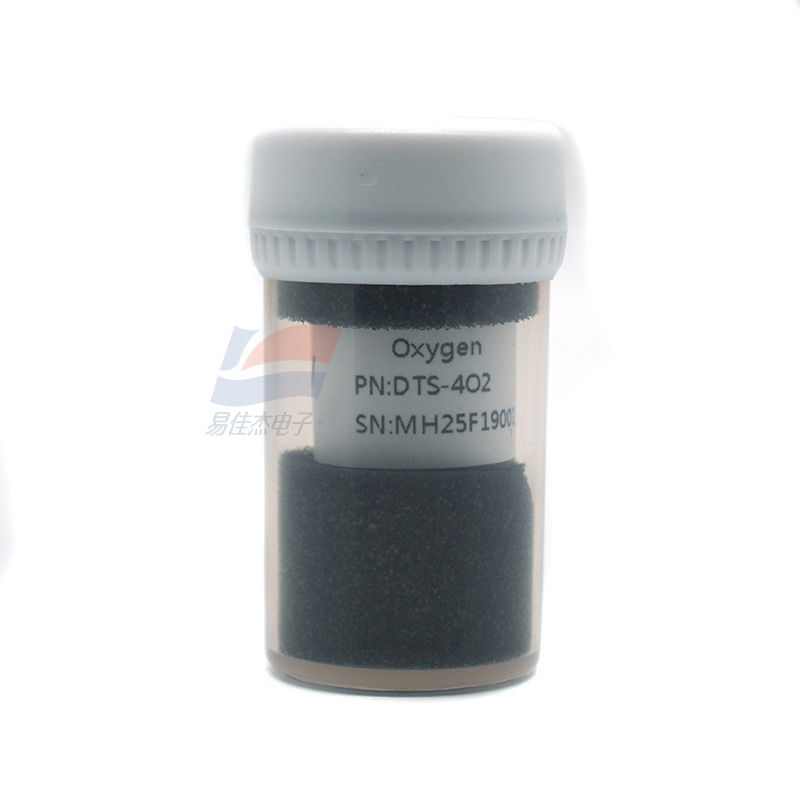

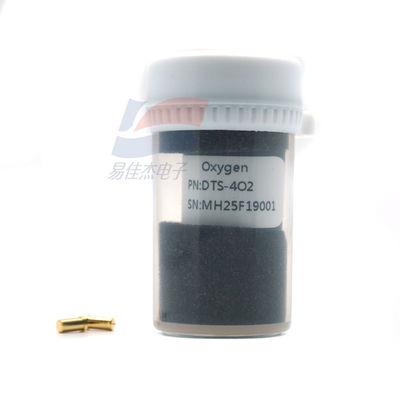

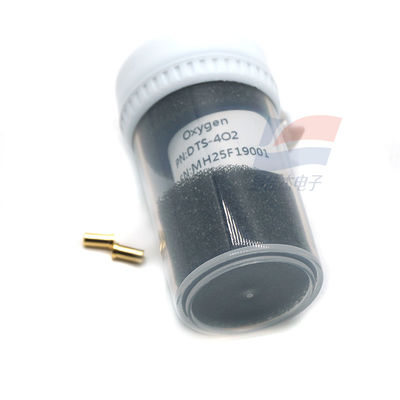

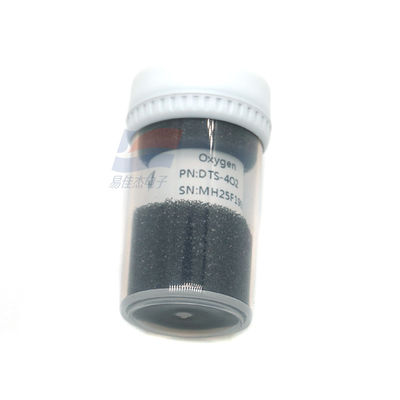

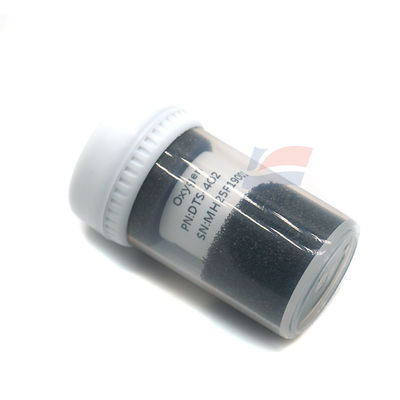

DTS-4O2 Industrial Electrochemical Oxygen Sensor Is Used In Mining Industry

Features:

DTS-4O2 oxygen sensor is a primary battery type sensor. It features high sensitivity, high accuracy, good stability, and fast response. It is widely used in various environments for oxygen gas monitoring, such as industrial oxygen monitoring, environmental protection oxygen monitoring, mine oxygen monitoring, and warehouse oxygen detection.

Performance parameters:

Measurement of gas: Oxygen (O2)

Measurement range: 0 - 25% VOL

Maximum overload: 30% VOL

Sensitivity: 3.8 - 5.7 uA/vol%

Zero-point drift: < 0.2% vol

Resolution: 0.1% VOL

Response time (t90): < 10 seconds

Output linearity: Linearity

Environment:

Operating temperature: -40 - +50℃

Working humidity: 15% - 95% RH (no condensation)

Work pressure range: 1 ± 0.1 standard atmospheres

Lifetime Warranty:

Long-term output drift: < 5% per year

Recommended storage conditions: In a sealed container at 0 - 20℃

Expected service life: 24 months in the air

Storage period: 6 months for original packaging

Warranty period: 12 months
