YJJ WF5805F Waterproof Digital Pressure Sensor For Diving Vehicle Logbook

Product Description:

WF5805F Waterproof Digital Pressure Sensor Is Used In Diving Vehicle logbook

Features:

WF5805F is a high-resolution pressure sensor, featuring I²C and SPI interfaces. It includes a silicon piezoresistive pressure element and a high-resolution 24-bit ΔΣ ADC.

The WF5805F offers high-precision 24-bit digital outputs for pressure and temperature. Users can adjust the conversion speed and height according to their application needs. All the built-in calculations employ high-speed 4MHz floating-point operations, resulting in low calculation errors. Data compensation is internally integrated, and the communication connection is very simple.

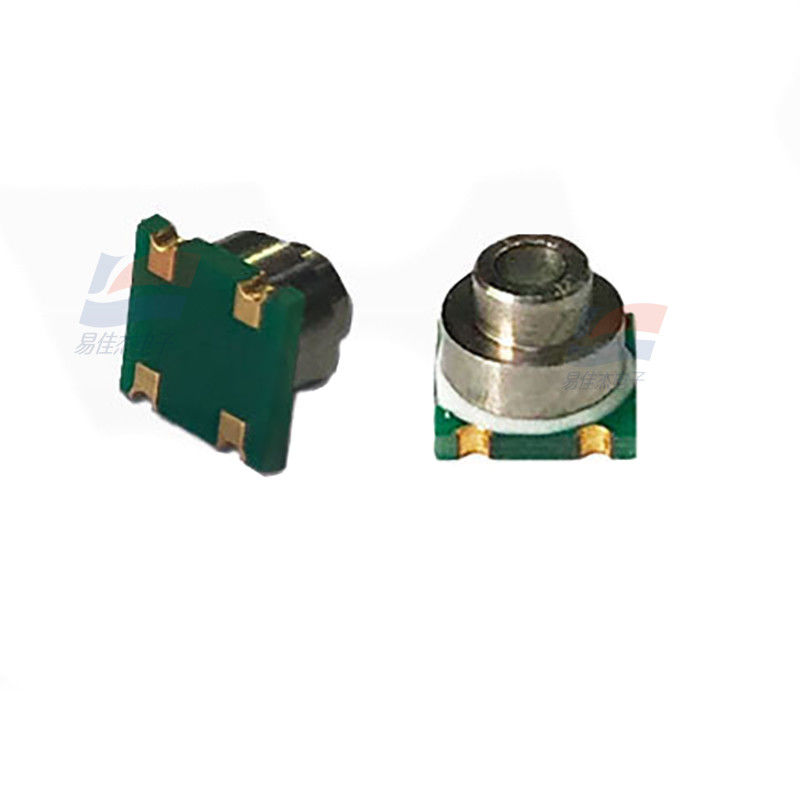

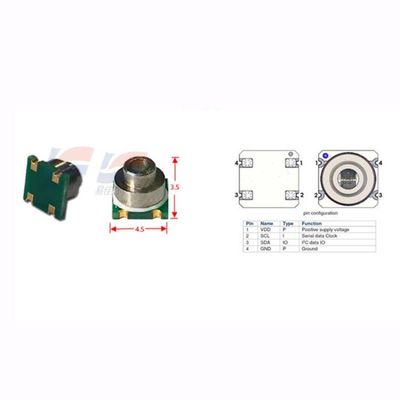

The WF5805F sensor is packaged with a stainless steel ring surface and the substrate, and complies with RoHS standards. It is extremely small, measuring only 4.5x4.5mm in size and 3.5mm in thickness.

Parameter Name External Conditions Minimum Typical Maximum Unit Remarks

General Characteristics

Pressure Range - 0~10; 0~40; 0~200 kPa 1

Overload pressure TA = 25℃ 2X FS

Explosion pressure TA = 25℃ > 3X FS

Operating temperature - -20 to +85 ℃

Storage temperature - -40 to +125 ℃

Media compatibility: air and non-corrosive gases

Electrical characteristics

Excitation voltage TA = 25℃ 5 to 10 V

Excitation current TA = 25℃ 1 to 2 mA

Bridge arm resistance TA = 25℃ 4, 5, 6 kΩ 2

Zero point offset TA = 25℃ -15 to 0 to 15 mV

Full-scale output TA = 25℃

45, 60, 75 mV 10kPa range

60, 75, 90 mV 40kPa range

70, 90, 110 mV 200kPa range

Linearity TA = 25℃ -0.3 to 0.3 %VFS best-fit straight line

Zero point offset temperature coefficient TA = 25℃ -0.08 to 0.08 %VFS

Full-scale output temperature coefficient TA = 25℃ -0.27 to -0.22 to -0.17 %VFS /℃ constant pressure excitation

Full-scale output temperature coefficient TA = 25℃ -0.03 to 0.03 %VFS /℃ constant current excitation

Resistance temperature coefficient TCR TA = 25℃ 1600 to 2000 ppm/℃

Pressure hysteresis TA = 25℃ -0.1 to 0.05 to 0.1 %VFS

Temperature hysteresis TA = 25℃ -0.3 to 0.3 %VFS
