Product Description:

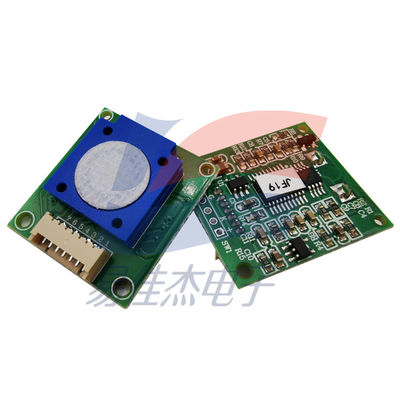

YJJ ZE25A-O3 Ozone Gas Sensor Is Used for Monitoring Concentration of Disinfectants and Gases
Features:
Product details
ZE25A-O3 electrochemical ozone module is a universal and miniaturized module.The detection of ozone gas in the air based on electrochemical principle has good selectivity and stability.Built-in temperature sensor for temperature compensation;At the same time, it has digital output and analog voltage output mode, convenient to use.Ze25-o3 is a universal gas module designed and manufactured by combining mature electrochemical detection technology with sophisticated circuit design.
Sensor features
High sensitivity, high resolution, low power consumption, long service life
UART and analog voltage signal are provided
High stability, excellent anti-interference ability, temperature compensation, excellent - output
The main application
Portable meters, air quality monitoring equipment, disinfection cabinets, smart home equipment and other places.
Technical indicators
Product model ze25-o3
Detection of gas O3
Interfering with gases such as alcohol
Output data DAC(0.4-2v standard voltage signal corresponds to concentration of 0-10ppm)
UART output (3V level)
Operating voltage 3.7v ~ 5.5v (no voltage reverse connection protection)
Preheating time ≤3 minutes
Response time ≤90 seconds
Recovery time ≤90 seconds
The range of 0 ~ 10 PPM
Resolution ≤0.01 PPM
Operating temperature: -10℃ ~ 55℃
Working humidity: 15%RH- 90% RH (no condensation)
Storage temperature: -20℃ ~ 55℃
Service life: 2 years (in air)
Specifications:
| Preheating time |
≤3 minutes |
| Response time |
≤90 seconds |
| The range of |
0 ~ 10 PPM |
| Resolution |
≤0.01 PPM |
