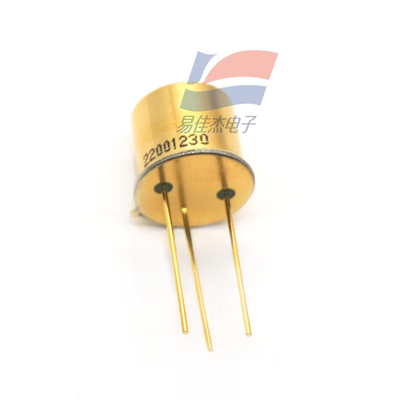

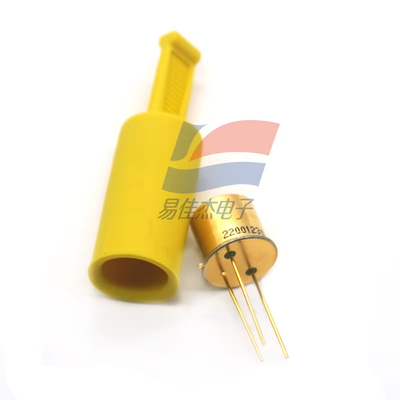

Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial

Infrared Light Source  JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial
Infrared Light Source  JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial Infrared Light Source  JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial

تصویر بزرگ :  Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial

جزئیات محصول:
محل منبع: CN
شماره مدل: JSIR350-4-AL-R-D6
پرداخت:
مقدار حداقل تعداد سفارش: 1 عدد
قیمت: قابل مذاکره
جزئیات بسته بندی: بسته بندی استاندارد
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram
قابلیت ارائه: 5000 قطعه

Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial

شرح
دامنه خروجی طیفی: تایپ 1 - 20 میکرومتر مقاوم در برابر گرما: 40 ± 20 Ω
ثابت زمانی: 15 میلی ثانیه مصرف برق نامی: 650 مگاوات
ولتاژ عملیاتی: 4.9 V جریان فعلی: 132 میلی آمپر
برجسته کردن:

Infrared light source for NDIR gas analysis,Industrial infrared photoelectric sensor,JSIR350-4-AL-R-D6 infrared light source

,

Industrial infrared photoelectric sensor

,

JSIR350-4-AL-R-D6 infrared light source



                        Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial



Product Features:

  • The sensor has an adjustable input power, which can meet different application requirements.
  • It features a high - temperature - resistant design with a hot resistance of 40 ± 20 Ω, enabling it to maintain stable and accurate readings in high - temperature environments.
  • With a high - modulation frequency, it is suitable for applications requiring fast response.
  • It has a large active area of 2.2 x 2.2 mm², which can improve the sensitivity and accuracy of gas detection.
  • The sensor has a long service life, exceeding 100,000 hours, ensuring long - term reliable operation and cost - effectiveness.

Applications:



The JSIR350 - 4 - AL - R - D6 sensor, together with a thermopile and a pyroelectric detector, is used in NDIR gas analysis and other applications. It is suitable for industrial, commercial, and residential scenarios where reliable gas detection is required, such as detecting combustible gases or monitoring specific gas concentrations.



Parameters

Values

Model Number JSIR350 - 4 - AL - R - D6
Brand Name Micro - Hybrid
Spectral Output Range Typ. 1 - 20 μm
Hot Resistance 40 ± 20 Ω
Time Constant 15 ms
Rated Power Consumption 650 mW
Operating Voltage 4.9 V
Operating Current 132 mA
Effective Area Temperature 640 °C
Temperature Coefficient 650 ppm/K
Package TO39 (modified)
Service Life > 100,000 h (at rated power, 40 Ω, 10 Hz, 50% duty cycle)
Active Area 2.2 x 2.2 mm²



Infrared Light Source  JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial 0
