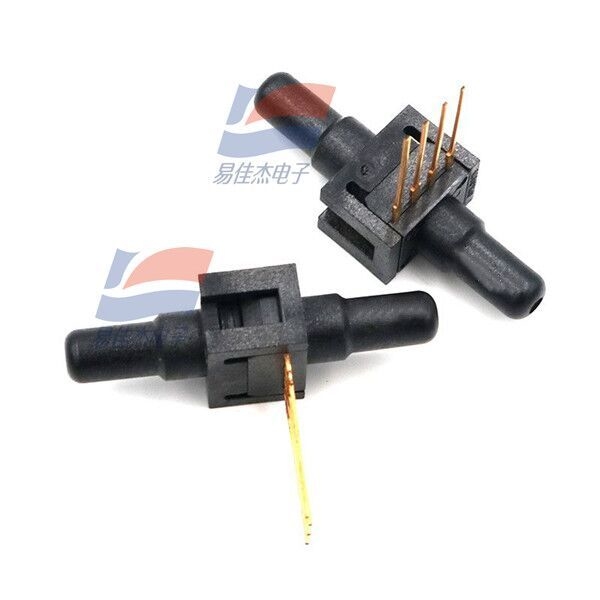

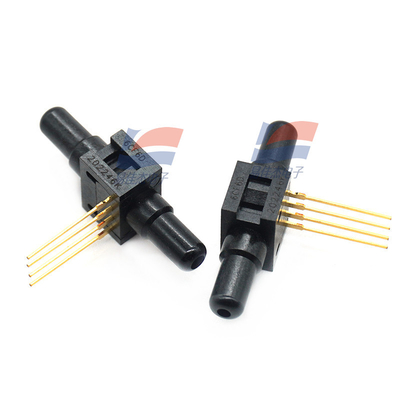

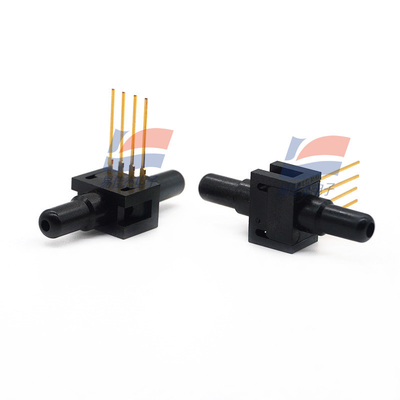

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor
YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

تصویر بزرگ :  YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

جزئیات محصول:
محل منبع: ایالات متحده آمریکا
نام تجاری: YJJ
شماره مدل: 24pcffa6d
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: قابل مذاکره
جزئیات بسته بندی: بسته جعبه
زمان تحویل: 5-8 روز
شرایط پرداخت: L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram
قابلیت ارائه: 1500

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

شرح
دامنه: 0 - 100 psi دقت: 0.2 ٪ از مقیاس کامل (FS)
سیگنال خروجی: 156 - 294 MV منبع تغذیه: 10 ولت DC
سازگاری متوسط: گازهای غیر خورنده جبران نقطه صفر: -30 تا +30 میلی ولت
خطی بودن: ± 0.25٪ FS زمان پاسخ: 1 میلی ثانیه
برجسته کردن:

medical differential pressure sensor 100PSI,24PC series pressure sensor medical,electronic pressure sensor with warranty

,

24PC series pressure sensor medical

,

electronic pressure sensor with warranty

Product Description:

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor



Features:

Detailed parameter description of the 24PCFFA6D pressure sensor:

1. Basic Parameters

Brand: Honeywell

Pressure Type: Differential

Range: 0 - 100 psi (approximately 6.9 bar)

Accuracy: ±0.2% of Full Scale (FS)

Output Signal: 156 - 294 mV (non-amplified analog output)

Power Supply Voltage: 10 V DC (allowable range 10 ± 0.01 VDC)

Medium Compatibility: Non-corrosive gases/liquids such as nitrogen, oxygen, water, etc.

2. Performance Indicators

Zero Point Offset: -30 to +30 mV (typical value 0 mV)

Linearity: ±0.25% FS (optimal fitting straight line)

Repeatability & Hysteresis: ±0.15% FS

Response Time: 1 ms

Temperature Drift:

Zero Point Drift: ±2.0 mV (0 - 50℃)

Sensitivity Drift: ±5.0% FS (25 - 50℃)

Long-Term Stability: ±0.5% FS per year

3. Environmental Adaptability

Operating Temperature: -40 to +85℃

Storage Temperature: -55 to +100℃

Protection Grade: Not explicitly stated, but meets industrial-level sealing requirements

4. Physical Characteristics

Electrical Connection: Wire Leads

Weight: Approximately 2 g

Certification: Passed vibration (20g, 0 - 2kHz) and shock (150g) tests

5. Application Scenarios

Industrial process control (such as pneumatic system pressure monitoring)

Medical equipment (requires compatibility with medium verification)



Specifications:

Work pressure 100 psi
Output type Analog
Installation style Through Hole
Operating power supply voltage 10V



YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor 0
