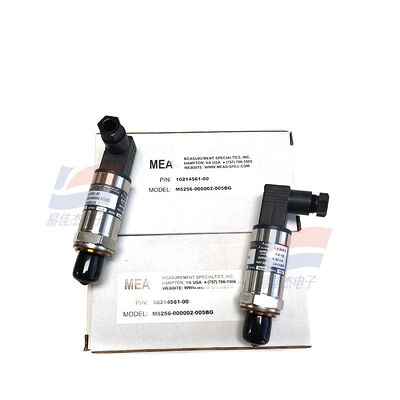

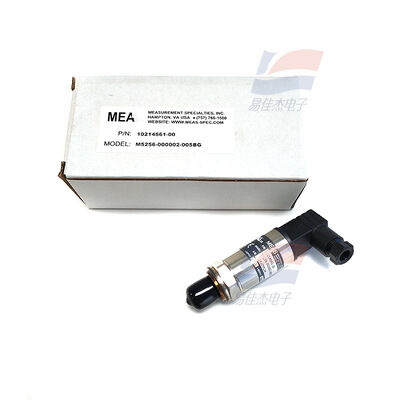

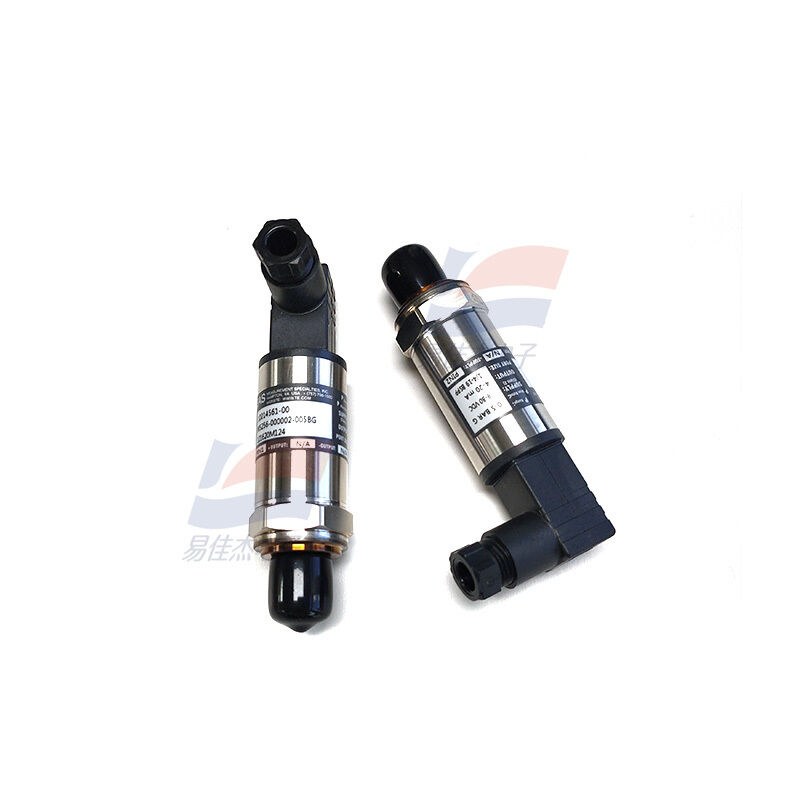

YJJ M5256-000002-005BG 0-5bar 0-0.5MPa Industrial Compact Pressure Transmitter

Product Description:

YJJ M5256-000002-005BG 0-5 bar 0-0.5 MPa Industrial Compact Pressure Transmitter

Features:

I. Basic Information

Series: M5200 Industrial Compact Pressure Transmitter (Glass Micro-fused Piezoresistive Principle)

Model Disassembly

M5256: Product Series Model

000002: 4-20mA Current Output, 2-wire System

005BG: Range 0-5 bar (0-0.5 MPa), Gauge, Stainless Steel Isolation Diaphragm

Core Features: No O-ring, No Welding Joint, Integrated Stainless Steel Structure, Resistant to Vibration, Impact Resistance, IP68 Waterproof, Suitable for Harsh Industrial Environments

II. Core Technical Parameters

Pressure Range: 0-5 bar (0-0.5 MPa) Gauge Pressure

Accuracy: ±0.25% FS (Non-linear, Hysteresis, Repeatability Combined Error), Total Error Band ±1.0% FS

Overload / Burst Pressure: 2 times the Range Overload, 3 times the Range Burst Pressure

Output Signal: 4-20mA Two-wire Standard Current Output

Power Supply Voltage: 9-30VDC (Standard 24VDC), Supports Reverse Polarity Protection, Output Short Circuit Protection

Medium Contact Material: 17-4PH Stainless Steel, Compatible with Air, Water, Hydraulic Oil, Weakly Corrosive Gases/Liquids

Operating Temperature: -40℃~+125℃; Compensation Temperature -20℃~+85℃

Response Time: <3ms, Fast Dynamic Pressure Response

Long-Term Stability: ≤±0.25% FS / Year, Extremely Low Temperature Drift

Interface / Protection: Standard G1/4 Thread, Cable Outlets, IP68 Protection Grade

Anti-interference: EMC Electromagnetic Compatibility Certification, Resistant to 10V/m Radio Frequency Interference, Compliant with CE Industrial Standards

III. Main Applications (Suitable for Your Gas Detection, Industrial Instrument Business)

Gas Analyzer Accessories: Gas Path Pressure Monitoring, Sampling Pump Pressure Closed-loop Control, Flow Sensor Pressure Compensation, Compatible with Shengmi, SENKO, Xiangxiang, and Aosong Complete Sets

Industrial Hydraulic / Pneumatic Systems: Air Compressor, Cylinder, Hydraulic Station, Pipeline Pressure Monitoring

Environmental Protection / Water Treatment: Sewage Equipment, Water Supply Pipeline, Water Quality Online Monitoring Instrument Pressure Collection

HVAC / Refrigeration: Air Conditioner, Refrigeration Unit, Refrigerant Pipeline Pressure Monitoring

Precision Equipment / Laboratory: Gas Ratio Device, Precise Fluid Control, Automated Equipment Pressure Detection

OEM Accessories: Gas Detector, Flow Meter, Built-in Pressure Module for Industrial Control Equipment
