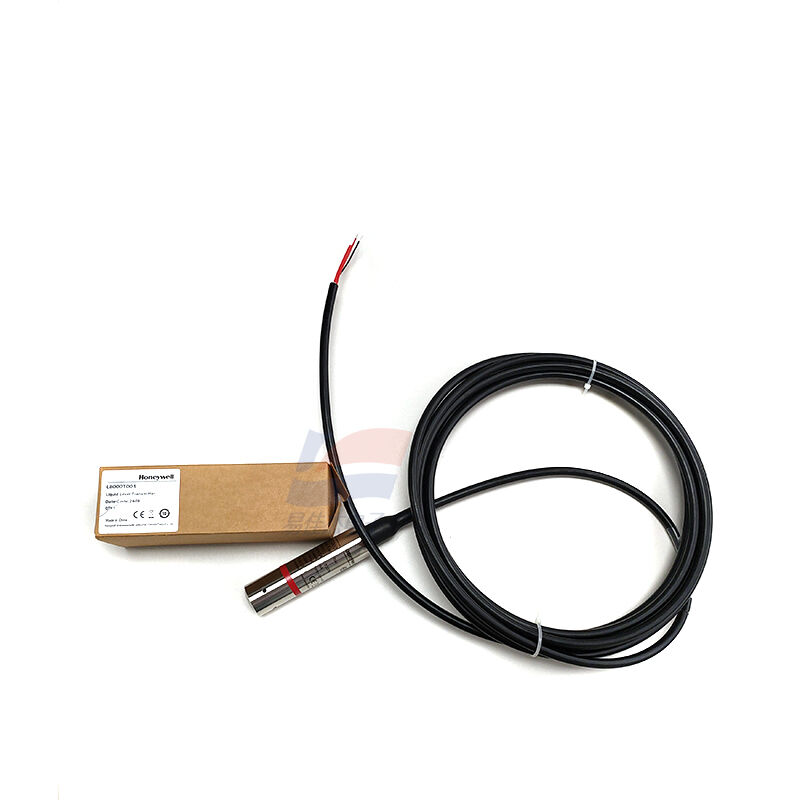

L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply

L8000T003 Submersible Level Transmitter 3-Meter Liquid Level 24 VDC Power Supply

Key Applications
*Liquid level monitoring for water tanks associated with air compressors and other compressors (most common application for this model)
*Level measurement in sewage treatment plants, storage reservoirs, and sewage wells
*Level monitoring for rivers, reservoirs, fire-fighting water tanks, and chemical storage tanks
*Level detection for oil and water tanks in mining equipment and construction machinery

Operating Principle
The sensor is submerged at the bottom of the liquid, where the liquid pressure acts upon the built-in diffused silicon pressure-sensing element. This converts the hydrostatic pressure signal into a 4–20 mA current signal, which is transmitted to a PLC or digital display unit to enable real-time liquid level monitoring, high/low-level alarms, and automatic pump start/stop control.

Specification:
