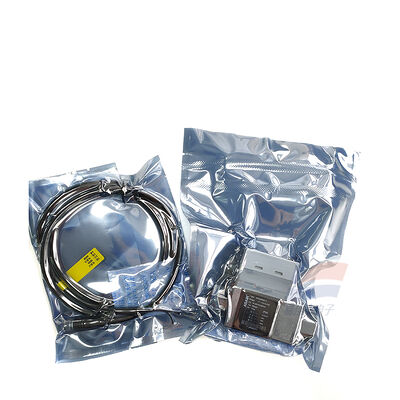

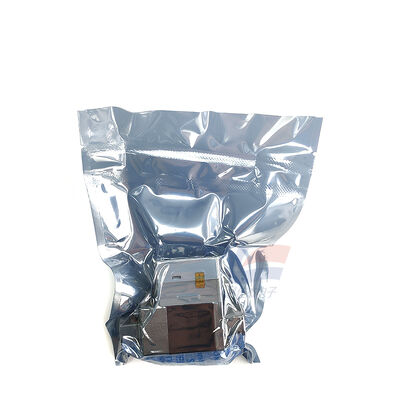

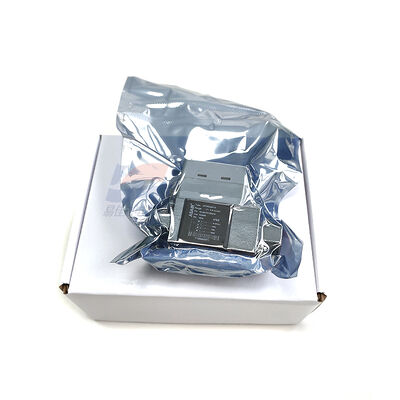

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread

Model Breakdown
AFD5004: Product series + flow range specification; flow range: 0.5–4 L/min (measurement of very low liquid flow rates)
R: Thread type = RC3/8 (British Standard Taper Pipe Thread—internal, DN10 pipe size)
10: Output signal is RS485 (Modbus-RTU); includes local digital display; no temperature sensing function

Specification:

Comparison of available output models in the same series
AFD5004A10: Rc3/8 thread, 4–20 mA analog output, with display
AFD5004V10: Rc3/8 thread, 1–5 V voltage output, with display
AFD5004N10: Rc3/8 thread, NPN switch output
AFD5004P10: Rc3/8 thread, PNP switch output
